Choosing the Right 4G Industrial Gateway for EV Chargers and Smart Lockers

As Smart Cities and the Industrial Internet of Things (IIoT) expand rapidly, system integrators and equipment manufacturers face a critical challenge: ensuring reliable, continuous machine-to-machine (M2M) communication in unattended, harsh outdoor environments.

Whether it is processing a payment at an EV charging station or updating the availability status of a smart locker, a stable network connection is the backbone of operational efficiency.

When searching for the optimal cellular router, the WIS901-GE General 4G Industrial Gateway stands out as a robust, industrial-grade solution designed to address large-scale deployment challenges. Here is a comprehensive guide on how to choose the right 4G gateway for these specific M2M scenarios.

The Critical Challenges of Unattended M2M Deployments

Unlike indoor commercial routers, devices deployed in EV charging stations, smart parcel lockers, intelligent transportation, and security surveillance must withstand extreme conditions:

1. Temperature Extremes: Outdoor kiosks and charging piles are exposed to direct sunlight in summer and freezing cold in winter.
2. Power Fluctuations: EV charging stations introduce heavy electrical loads, which can cause sudden voltage spikes or reverse polarity issues during installation.
3. Physical Constraints: Space inside smart lockers and charging piles is highly limited, requiring compact hardware that supports standard mounting options.
4. Network Downtime: A disconnected gateway means lost revenue, frustrated customers, and high truck-roll costs for manual resets.

Why WIS901-GE is the Ideal Choice for Smart Kiosks & EV Chargers

The WIS901-GE by WISE WISH TECHNOLOGY LTD is specifically tailored to mitigate these operational risks through its hardened hardware and smart software design.

1.Hardened Industrial Hardware Reliability

The WIS901 features an IP30-rated aluminum alloy metal enclosure measuring just $82 \times 98 \times 28\text{mm}$, making it ideal for compact spaces inside standard DIN-rail or bracket-mounted enclosures.

• Extensive Operating Temperature: It functions flawlessly from $-20^{\circ}\text{C}$ to $85^{\circ}\text{C}$, ensuring uninterrupted performance regardless of seasonal weather shifts.
• Robust Power Protection: Equipped with a 3.5mm x 2 plug-in terminal block, it supports a wide voltage range from DC 9V to 36V. Crucially, it features reverse polarity and over-voltage protection, eliminating the risk of terminal damage from wiring errors during field deployment.

2.Intelligent Auto-Recovery and Software Watchdog

In unattended stations, a network hang-up can paralyze the whole system. The WIS901 addresses this via a hardware watchdog and automatic fault recovery mechanism. If the cellular network drops or the system encounters an anomaly, the gateway detects it in real-time and executes a self-reboot to restore connectivity without any human intervention.

3.Flexible Interfaces for Legacy & Modern Hardware

Modern EV stations and smart lockers utilize a mix of Ethernet and Serial communication. The WIS901 provides the perfect bridging interface:

• Dual Ethernet Ports: Featuring 1 WAN/LAN port and 1 dedicated LAN port (10/100Mbps auto-negotiation) with 1.5KV network isolation transformer protection.
• Configurable Serial Port: It provides a 3-pin interface configurable for RS485 or RS232 communication, supporting standard baud rates up to 230400 bps. This allows seamless integration with industrial PLCs, meters, or legacy locker lock-control boards.

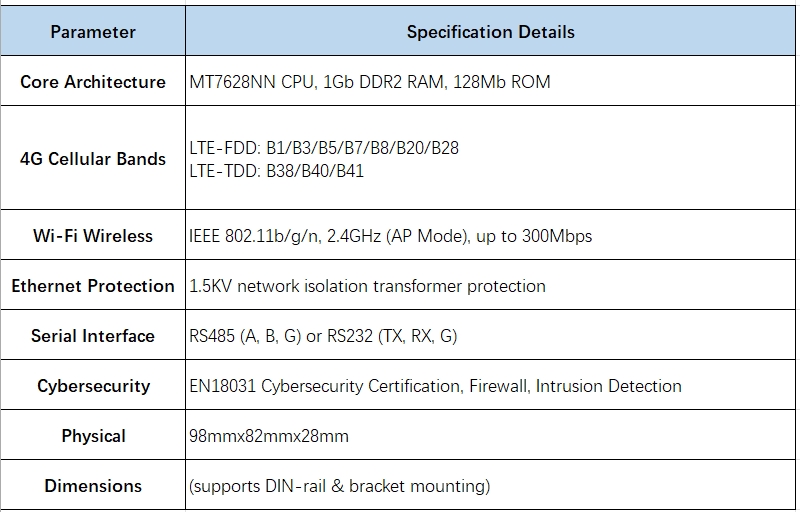

Technical Specifications: WIS901-GE at a Glance

When selecting your specific model, the WIS901 offers flexible configurations using certified Quectel CAT1 or CAT4 modules to balance bandwidth requirements and cost efficiency:

Model Selection for Your Project

Understanding the product model nomenclature ensures you order the exact configuration required for your application:

• WIS901AW5: 4G CAT1 module, equipped with Wi-Fi and an RS485 interface. (Excellent for cost-sensitive data acquisition like power monitoring in EV piles).
• WIS901BW2: 4G CAT4 module, equipped with Wi-Fi and an RS232 interface. (Perfect for higher bandwidth needs, such as streaming status updates or processing multimedia advertisements on smart locker screens).

Conclusion

Choosing a 4G gateway for smart lockers or EV charging stations requires looking beyond basic connectivity. The ideal choice must combine physical ruggedness, power adaptability, protocol versatility, and strict cybersecurity.

With its EN18031 certification, wide temperature resilience, and automated failover capabilities, the WIS901-GE Industrial 4G Gateway serves as a reliable, secure communication engine that lowers operational costs and maximizes uptime for global smart city infrastructures.

For full configuration steps, port forwarding setups, or to download the official WIS901-GE General 4G Industrial Gateway Product Specifications and User Manual (V2.2), please visit our technical support center.
